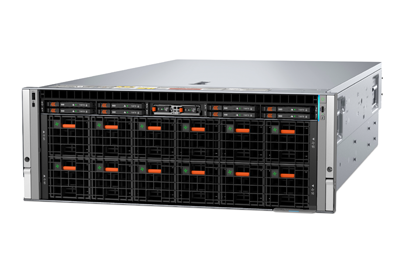

The 4U Dell PowerEdge XE7745 rack server is built to handle demanding workloads of modern industries, including finance, healthcare, manufacturing, and retail. It’s powered by dual 5th Gen AMD EPYC 9005 processors, offering up to 192 Zen 5 cores per CPU. The system supports 24x DDR5 DIMM slots, delivering up to 2.3TB of RDIMM memory at speeds of up to 6000MT/s. Future updates will enable support for 128GB DIMMs, raising the maximum memory capacity to 3TB and boosting speeds up to 6400 MT/s.
The PowerEdge XE7745 server offers flexible GPU configurations. A PCIe Base Board (PBB) supports up to 16x single-wide 75W PCIe Gen5 x16 GPUs, such as the NVIDIA L4, or up to 8x double-wide 600W GPUs, like the NVIDIA H200 NVL Tensor Core. The air-cooled chassis includes 8x EDSFF E3.S Gen5 NVMe SSDs for high-speed storage, along with 2x M.2 NVMe SSDs configured as a Boot Optimized Storage Subsystem (BOSS-N1). Beyond GPU support, the server can also handle up to 8x single-wide, full-height, half-length (SW-FHHL) PCIe Gen5 x16 cards, each drawing up to 150W, plus an optional OCP 3.0 NIC for enhanced networking flexibility.

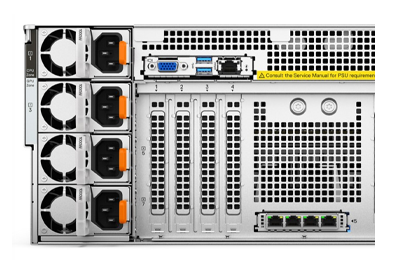

The system is powered by 8x 3200W Titanium hot-swappable power supply 4+4 redundancy. For simplified management, the server includes Dell’s integrated iDRAC10, enabling full system monitoring and control, both locally or remotely, without requiring additional software. iDRAC10 also supports automation and large-scale management. For centralized infrastructure management, Dell offers OpenManage Enterprise (OME), which integrates seamlessly with a variety of third-party tools.
If you know what you want but can't find the exact configuration you're looking for, have one of our knowledgeable sales staff contact you. Give us a list of the components you would like to incorporate into the system, and the quantities, if more than one. We will get back to you immediately with an official quote.
