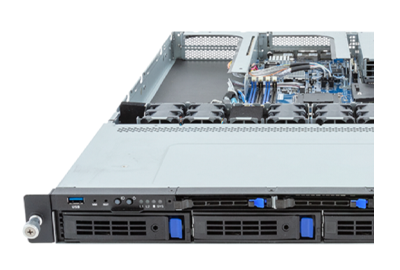

For storage, the front panel offers 4x 3.5" SATA hot-swap drive bays, with 4x additional 2.5" 7mm SATA hot-swap bays positioned directly above. At its core, the Gigabyte R133-C11 Server features a single processor from the AMD EPYC 4004 Series, AMD Ryzen 9000 Series, and AMD Ryzen 7000 Series with a maximum TDP of up to 170W. Due to thermal constraints, overclocking is not supported. Additionally, a single M.2 PCIe Gen4 x4 slot, compatible with 2280 or 22110 form factors, is available for operating system installation or expanded storage capacity.
The 1U Gigabyte R133-C11 is an ideal solution for networking applications in small to medium-sized businesses (SMBs) and hosted IT service environments. With DIMM modules up to 32GB supported, the system can be outfitted with up to 128GB of memory across 4x DDR5 DIMM slots. Compatible memory inlcudes ECC and non-ECC UDIMMs. When equipped with an AMD Ryzen 9000 CPU, the system delivers memory speeds of up to 5600 MT/s (1DPC), compared to 5200 MT/s (1DPC) with an AMD EPYC 4004 or AMD Ryzen 7000 processor installed.

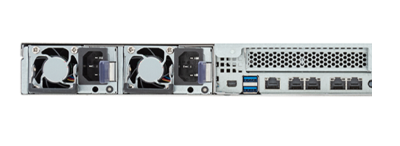

The rear of the 1U chassis gives access to 2x 10Gb/s LAN ports via Broadcom BCM57416 and 2x 1Gb/s LAN ports via Broadcom BCM5720. The system also allows administrators to access 1x PCIe Gen5 x16 FHFL slot for a GPU at up to 300W. There is also a PCIe Gen4 x4 FHHL slot. To power the machine, the rear of the chassis houses 1+1 redundant 800W 80 PLUS Platinum power supplies.
Other SKUs: AAB1
Gigabyte provides two complimentary management solutions. The pre-installed Gigabyte Management Console (GMC) enables efficient, local management of individual servers, while Gigabyte Server Manager (GSM) delivers centralized oversight and control across multiple systems. Both tools feature an intuitive, browser-based interface, allowing administrators to easily monitor system health, access diagnostics, and maintain operational efficiency.
If you know what you want but can't find the exact configuration you're looking for, have one of our knowledgeable sales staff contact you. Give us a list of the components you would like to incorporate into the system, and the quantities, if more than one. We will get back to you immediately with an official quote.
