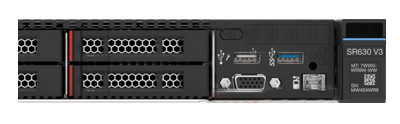

Outfitted with 2x 4th or 5th generation Intel Xeon Scalable processors with 8-channel memory architecture, the Lenovo ThinkAgile HX630 V3 features 32x memory module slots for up to 2x DIMMs per Channel (2DPC). At 1U, the front of the system offers support for 4x 3.5-inch or up to 10x 2.5-inch storage bays, depending on your workload. Drive types supported include SAS, SATA, and NVMe storage devices. CPUs supported on this system are restricted to a thermal design power rating of up to 350W.
The Lenovo ThinkAgile HX630 V3 comes in 3x different configurations each with slightly different system features. Depending on the system configuration, the system will support 8 to 4TB of DDR5 memory. The system can also be outfitted with up 2x M.2 drives that can be used to boot they system. All configurations can support up to 2x single-wide GPUs.
System Configurations

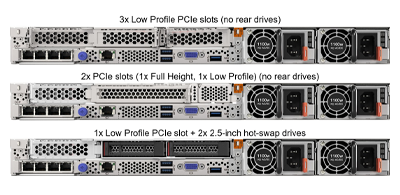

A dedicated port on the back of the system is compatible with standard management protocols including IPMI 2.0, SNMP 3.0, Redfish REST API and serial console via IPMI. There are several options for PCIe expansion based on the rear riser selection and the additional of the 2-bay, 2.5-inch drive cage in back. Up to 3x PCIe 5.0 or PCIe 4.0 slots are supported, plus a dedicated OCP mezzanine card slot. A dedicated area on the system board can be outfitted with a RAID adapter or host Bus Adapter (HBA) and will not take away any of the PCIe slots. For managing the system, Lenovo offers XClarity, which accesses the Lenovo XClarity Controller II (XCC2), which also offers the XClarity Provisioning Manager, and the XClarity Administrator Mobile app.
