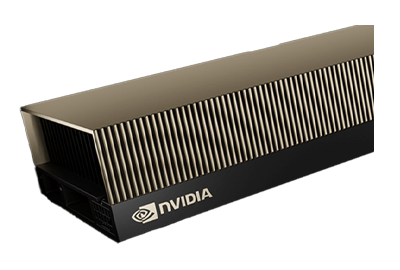

NVDIA RTX PRO 6000 Blackwell Server Edition - System Overview

NVDIA RTX PRO 6000 Blackwell Server Edition logo

In addition to 752 5th generation tensor cores, the NVDIA RTX PRO 6000 Blackwell Server Edition also delivers 188 fourth-generation ray-tracing (RT) cores, next-gen video engines, and 96GB of GDDR7 memory. With DLSS 4, it can provide exceptional image quality and smoother, faster frame rates for life-like simulations. With Universal MIG (multi-Instance GPU) functionality, a single GPU can be divided up into up to 4x fully isolated instances of 24GB each allowing for the simultaneous execution of diverse workloads. Along with 24,064 CUDA parallel processing cores, memory bandwidth is listed at 1597GB/s with a 512-bit memory interface.

The card offers 4x DisplayPort 2.1 ports for support of up to 4x monitors and occupies a PCIe 5.0 x16 slot. With DisplayPort 2.1, it can power high-resolution displays up to 8Kat 240Hz and 16K at 60Hz. With high-definition resolution, it delivers superior color accuracy and color depth. Depending on the host server for air flow, the unit is passively cooled and requires a 16-pin power connector. At full power, it consumes up to 600W (configurable) with a recommended host PSU of up to 1000W.

Check Availability

NVDIA RTX PRO 6000 Blackwell Server Edition - Specifications

GPU Engine

    Architecture

  • NVIDIA Blackwell Architecture
  • NVIDIA CUDA Cores

  • 24,064
  • Tensor Cores

  • 5th Generation
  • 752
  • Ray Tracing Cores

  • 4th Generation
  • 188
  • Single-precision performance (FP32)

  • 117 TFLOPS
  • Peak FP4 AI PFLOPS

  • 3.7 PFLOPS
  • RT Core Performance

  • 354.5 TFLOPS
  • Multi-Instance GPU

  • Up to 4 MIGs @ 24GB
Memory

    Standard Memory Configuration

  • 96 GB GDDR7 with ECC
  • Memory Interface

  • 512-bit
  • Memory Bandwidth

  • 1597 GB/s
Technology Support
    NVENC | NVDEC | JPEG
  • 4x | 4x | 4x

  • Confidential Compute
  • Supported

  • Secure boot with root of trust
  • Yes
Display Support
    Display Connectors
  • 4x DisplayPort 2.1

  • Graphics Bus
  • PCI Express 5.0 x16
Card Dimensions

    Length: 10.5"

    Height: 4.4"

    Slots: Dual-Slot
Thermal & Power

    Power Consumption

  • Up to 600W (Configurable)
  • Thermal Solution

  • Passive
  • Power Connector

  • 1x PCIe CEM5 16-pin

Check Availability
