The 10-bay Supermicro WIO SuperServer 1115SV-WTNRT server is a short-depth system built for virtualization, firewall applications, edge/cloud computing services, and more. The 23.5” depth chassis supports up to 768GB of DDR5 RDIMM memory when all 6x DIMM slots are filled. Maximum memory speeds can reach up to 4800MT/s. At its core, the system features a single AMD EPYC 8004 series processor with up to 64 cores, 128 threads, and a maximum TDP of up to 225W when air cooled.

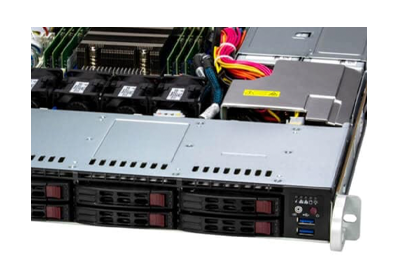

The front of the Supermicro 1115SV-WTNRT offers 10x 2.5” hot-swap drive bays for SATA, NVMe, or SAS configurations. NVMe and SAS support may require an additional storage controller or cables. In addition, the Supermicro SuperServer 1115SV-WTNRT carries 2x PCIe 3.0 x4 M.2 drives for 22110 or 2280 cards in the event more storage is needed or to boot the operating system.

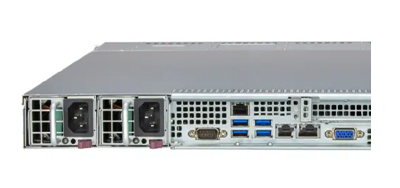

For graphics support, the 1115SV-WTNRT delivers support for up to 1x double-width or 2x single-width GPUs in a PCIe 5.0 x16 FHFL slot for NVIDIA PCIe T400 or NVIDIA PCIe RTX 4000 Ada Generation GPUs. A 1x PCIe 5.0 x16 LP slot remains. To power the machine there are 2x 860W redundant (1 + 1) Titanium level (96%) power supplies, which can be accessed through the rear of the chassis.
Administrators can deploy a suite of Supermicro tools to manage the system such as SuperDoctor 5, Supermicro Update Manager, and SuperServer Automation Assistant. SuperDoctor 5 is supported by both Windows and Linux platforms in command-line or web-based interfaces. This allows for real-time access to critical system metrics such as CPU temperature, power usage, fan speed, and more. It can be used at-chassis or remotely. Supermicro can also send notifications via email and SNMP, enabling proactive detection and resolution of potential issues.
If you know what you want but can't find the exact configuration you're looking for, have one of our knowledgeable sales staff contact you. Give us a list of the components you would like to incorporate into the system, and the quantities, if more than one. We will get back to you immediately with an official quote.
