The 2U, dual-socket MiTAC R2520G6 R2520G6U2BC Server is designed for high-performance computing, virtualization, and demanding enterprise workloads. It supports Intel Xeon 6 6700-series processors with E-cores and Intel Xeon 6700/6500-series processors with P-cores, with a Thermal Design Power (TDP) rating of up to 350W per CPU. It features 32x memory module slots across both sockets, utilizing an 8-channel memory architecture to support up to 8TB of DDR5 memory.

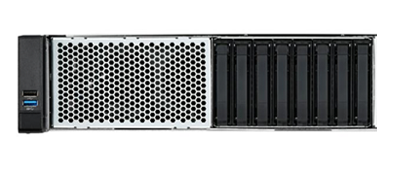

Supported memory types include RDIMM and 3DS RDIMM running at speeds of 6400 MHz (1DPC) or 5200 MHz (2DPC), as well as MRDIMMs at up to 8000 MHz (1DPC) when paired with P-core CPUs. The front of the MiTAC R2520G6 R2520G6U2BC server is equipped with 8x 2.5” hot-swap drive bays, supporting NVMe U.2, SATA, and SAS drives for flexible storage configurations. Internally, the system includes 2x PCIe Gen4 slots, compatible with 2280 and 22110 form factor M.2 SSDs. Powering the system are dual 1300W 1+1 redundant power supply units, each delivering an 80 PLUS Titanium certification.

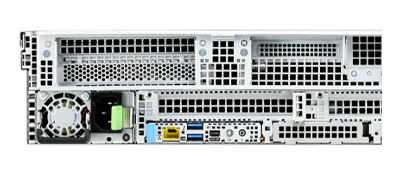

For expansion, the server offers the following connectivity options:
The integrated Intelligent Platform Management Interface (IPMI), powered by the onboard ASPEED AST2600 baseboard management controller (BMC), enables both local and remote system monitoring and management. This remote management solution allows administrators to efficiently monitor system health, performance metrics, and operational status from virtually any location.
If you know what you want but can't find the exact configuration you're looking for, have one of our knowledgeable sales staff contact you. Give us a list of the components you would like to incorporate into the system, and the quantities, if more than one. We will get back to you immediately with an official quote.
